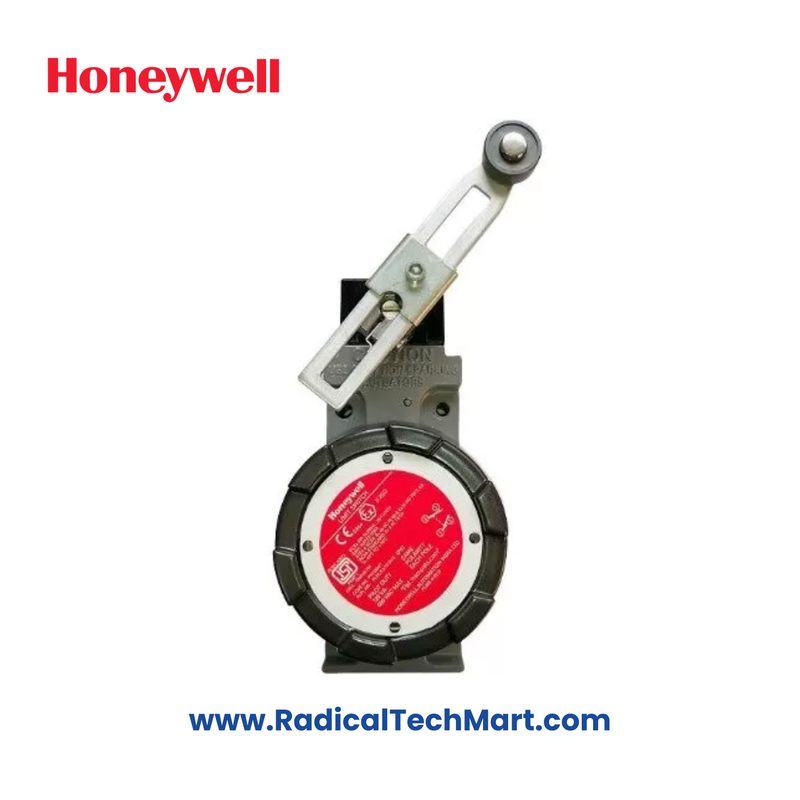

GLDB01A1B-F048 Honeywell Limit Switch

Key Specifications

• Brand: Honeywell
• Model: GLDB01A1B-F048

Actuator Options

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch-style 4-pin connector
• Other cable/connector options are available upon request (contact Honeywell Representative).

Contact Options

• GLC Metal Housing and GLD Plastic Housing:
  • 1NC/1NO
  • 2NC
  • 2NO
• GLE Metal Housing:
  • 1NC/1NO
  • 2NC
  • 2NO
  • 2NC/2NO

Contact Types

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow-action

Contact Material

• Silver (standard)
• Gold-plated (for low-energy applications)

Electrical Ratings

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV

Sealing

• GLC and GLE Series: IP66; NEMA 1, 4, 12, 13
• GLD Series: IP66/67; NEMA 1, 4X (indoor use only), 12, 13

Environmental Conditions

• Operating Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Pollution Code: 3

Mechanical Performance

• Mechanical Life: Up to 10 million cycles
• Max Actuation Frequency:
  • 250 operations/minute
  • 100 operations/minute (wobbles)

Shock and Vibration Resistance

• Shock: 50 g per IEC 60068-2-27; railway applications conform to IEC 61373 Class I Car B Type
• Vibration: 10 g per IEC 60068-2-6; railway applications conform to IEC 61373 Class I Car B Type

Approvals and Standards

• Approvals: CE, UKCA, UL, CSA, CCC1
• Conformance:
  • EN50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN45545-2 (GLC/GLE)
